Tutorial: How to add a cross section to your production drawing

Goal:

Adding cross sections to your production drawing.

Steps:

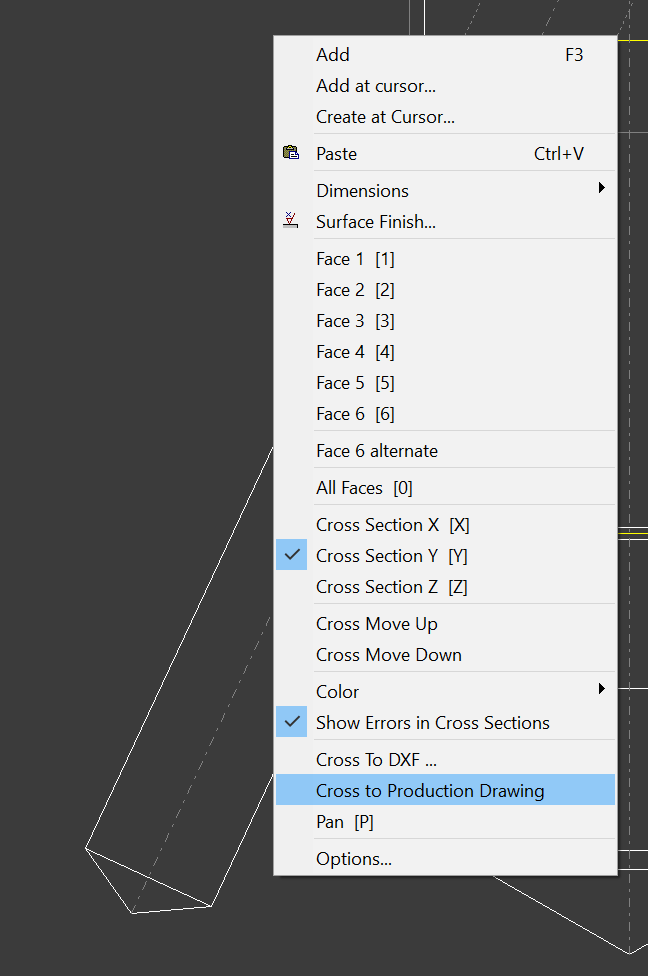

• Make a cross section in the desired axis, use the right mouse button in the cross section and use Cross to Production Drawing.

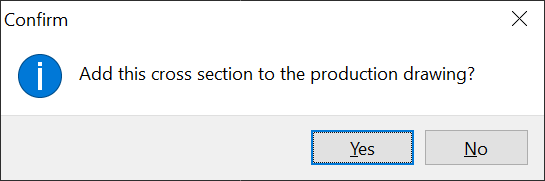

• Say Yes at.

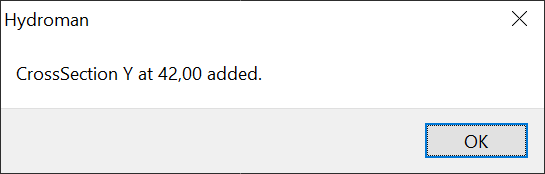

• Press OK.

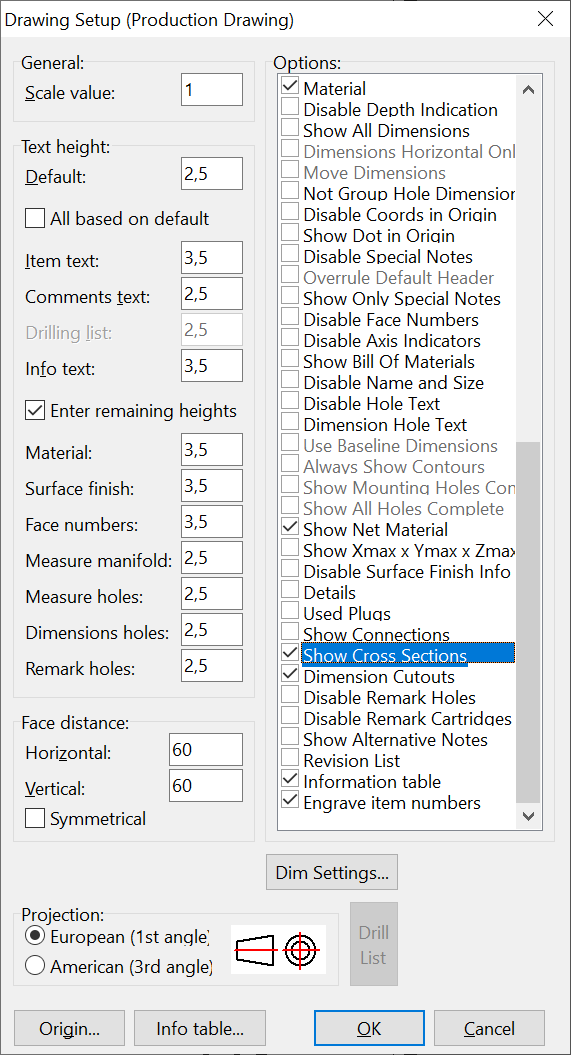

• Open your production drawing and go to settings and mark Show Cross Sections.

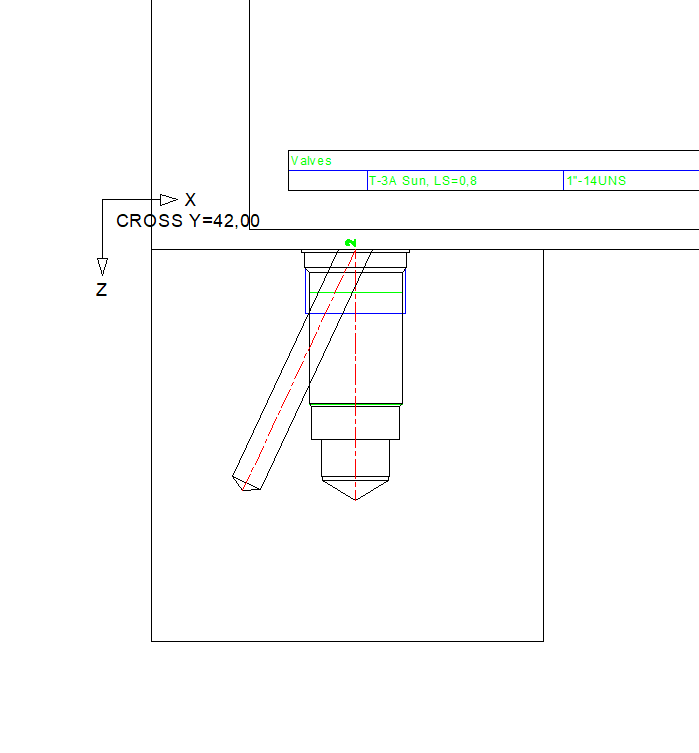

The cross section is added to the production drawing.

You can move the cross section to a desired position on the production using your mouse.
